BOE 10.1inch LCD Display with 1280x800 Pixels Resolution and 300cd Brightness Industrial LCD Panel

Package : Original industrial packing

Model Number : GV101WXM-N81

Quality : Brand new Original

Brand Name : BOE

model : WLED

contrast ratio : 800:1

MOQ : 10pcs

Delivery Time : 4-5 working day

brightness : 300cd

Payment Terms : T/T,W,Western Union,MoneyGram

working time : 15k hours

Packaging Details : Industrial packing

style : wide screen high resolution 1280*800

Price : Negotiation

connector : 30

Supply Ability : 3000pcs per week

material : glass oled

Certification : Rohs,CE,FCC

color : 16.7m colors

Place of Origin : CHINA

Contact Now

BOE 10.1-inch Outdoor High Brightness LCD Display GV101WXM-N81

High-performance 10.1-inch industrial LCD panel featuring 1280×800 WXGA resolution, 300 cd/m² brightness, and 30-pin eDP connector. Designed for outdoor and industrial applications with wide operating temperature range.

BOE 10.1inch LCD Display with 1280x800 Pixels Resolution and 300cd Brightness Industrial LCD Panel

Product Overview

GV101WXM-N81 (Product Code: BOE03F2) is a 10.1" diagonal a-Si TFT-LCD display panel from BOE Technology Group Co., Ltd., featuring an integrated WLED backlight system with LED driver. This industrial-grade panel operates in temperatures from -20°C to 60°C and is recommended for Pad & Tablet and Industrial applications.

Key Features

10.1-inch WXGA display (1280×800 pixels, 16:10 aspect ratio)
High brightness: 300 cd/m² (typical) for outdoor visibility
WLED backlight with 15,000 hours lifespan and integrated LED driver
Wide viewing angles: 85/85/85/85 (CR≥10)
eDP interface (1 Lane, eDP1.2) with 30-pin connector
Industrial operating temperature: -20°C to 60°C
ADS technology with normally black, transmissive display mode

Technical Specifications

Manufacturer	BOE	Display Size	10.1"
Resolution	1280(RGB)×800, WXGA	Display Area	216.96×135.6 mm
Outline Size	228.3×149.05×2.6 mm	Brightness	300 cd/m² (Typ.)
Contrast Ratio	800:1 (Typ.)	Viewing Angle	85/85/85/85 (Typ.)
Display Colors	16.7M, 48% NTSC	Power Consumption	2.16/2.52W (Typ./Max.)
Response Time	30 ms (Typ.)	Interface	eDP (1 Lane), eDP1.2, 30-pin connector
Input Voltage	3.3V (Typ.)	Panel Weight	155g (Max.)
Surface Treatment	Glare (Haze 0%), Hard coating	Touch Screen	Without
Operating Temperature	-20°C to 60°C	Storage Temperature	-20°C to 60°C

Note: Production status information is for reference only. For integration into your products, we strongly recommend contacting BOE or their authorized agents for the latest production and specification details.

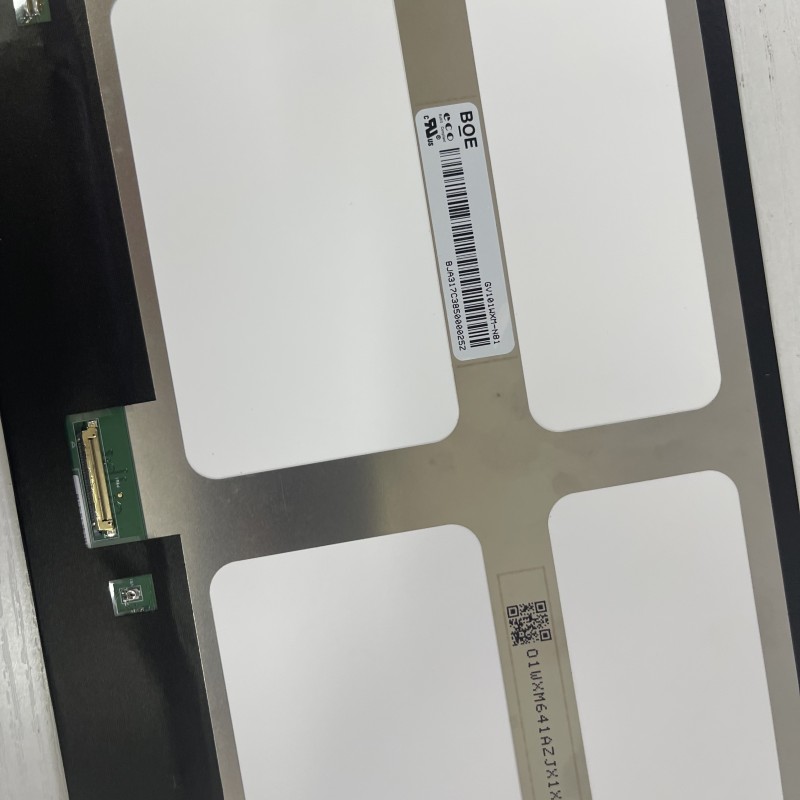

BOE 10.1inch LCD Display with 1280x800 Pixels Resolution and 300cd Brightness Industrial LCD Panel Images
