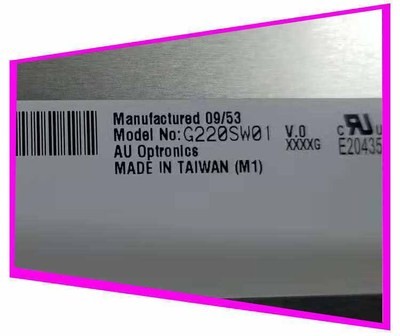

300cd/m2 Brightness 22'' Wide Screen AUO Industrial Panel LCD Display with 30 Pin Connector

Product Categories

FOCUS VISION TECHNOLOGY LIMITED

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Brand Name : AUO

Model Number : G220SW01 V0

Certification : Rohs,CE,FCC

Place of Origin : China

MOQ : 10pcs

Price : Negotiation

Payment Terms : T/T,W,Western Union,MoneyGram

Supply Ability : 3000pcs per week

Delivery Time : 4-5 working day

Packaging Details : Industrial packing

Quality : Brand new Original

Package : Original industrial packing

material : glass oled

color : 16.7M colors

model : WLED

style : wide screen high resolution 1680*1050

brightness : 300cd

connector : 30pin

contrast ratio : 2000:1

working life : 50K hours

Contact Now

Panel Brand	AUO	Panel Model	G220SW01 V0
Panel Size	22.0"	Panel Type	a-Si TFT-LCD , LCM
Resolution	1680(RGB)×1050 , WSXGA+	Pixel Format	RGB Vertical Stripe
Display Area	473.76(W)×296.1(H) mm	Bezel Opening	477.7(W)×300.1(H) mm
Outline Size	493.7(W)×320.1(H) mm	Surface	Antiglare, Hard coating (3H)
Brightness	300 cd/m² (Typ.)	Contrast Ratio	2000:1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (Typ.)(CR≥10)	Display Mode	MVA, Normally Black, Transmissive
Best View on	Symmetry	Response Time	15/5 (Typ.)(Tr/Td); 8 (Typ)(G to G)
Display Colors	16.7M 72% (CIE1931)	Lamp Type	6 pcs CCFL , 50K hours , Without Driver
Frequency	60Hz	Touch Screen	Without
Panel Weight	2.95Kgs (Typ.)	Application
Signal Interface	LVDS (2 ch, 8-bit) , 30 pins , Connector
Input Voltage	5.0V (Typ.)
Environment	Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C

300cd/m2 Brightness 22'' Wide Screen AUO Industrial Panel LCD Display with 30 Pin Connector

The G220SW01 V0 (Alias: G220SW01 V.0) is a 22.0 inch diagonal a-Si TFT-LCD display panel product from AU Optronics Corp. (hereafter called AUO), with an integral CCFL backlight system, without backlight driver, without touch screen. It features an operating temperature range of 0 ~ 50°C , a storage temperature range of -20 ~ 60°C . It's general features are summarized by einklcd in the following: High Color Gamut, Antiglare Surface, Wide Viewing Angle, Landscape type, Lamp life ≥ 50K hours, Wide Aspect Ratio , Mass production from Nov. 2008. Based on its features, Panelook recommend that this model be applied to Industrial etc. According to the information stored in einklcd this model mass production on Q4, 2008 and last shippment on Q4, 2015, Now this model is discontinued. We inputted this model's specification on Dec 19 2012 for the first time, and the latest update on Jul 7 2015. If you want to embed G220SW01 V0 LCM in your future product, einklcd strongly recommend that you should contact with AUO or it's agent to learn lateast production and specification detail. The G220SW01 V0 production status marked on einklcd.com is for reference only and should not be used as the basis for the user's decision making.

It's 300cd/m2 lcd MODEL for industrial field use.

All our LCD LED screen monitor module panel products will be full test one by one before sending .
